| Business Type | Supplier, Trader |
| Material | Brass |
| Packaging Type | Box |
| Voltage | 24V DC |
| Click to view more | |
Product Details
Temperature Range
-10°C To 80°C
Brand Name
Castel
Model Number
1064 4
Pressure Range
0-10 Bar
Connection Size
1/2 Inch
Model
1064/4
Description:
-

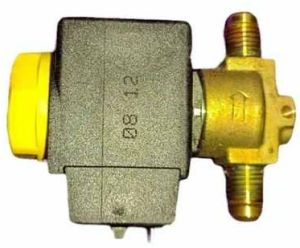

It’s a two-way, normally-closed solenoid valve that controls refrigerant flow when de-energized, it stays closed. Designed for refrigeration and HVAC systems,
-
It uses diaphragm-pilot operation and SAE flare connections (½″ or ¾″ depending on version).
-
Rated for a maximum working pressure of 45 bar (with a typical opening differential of 0.05 bar and up to 28 bar with standard coil).
-

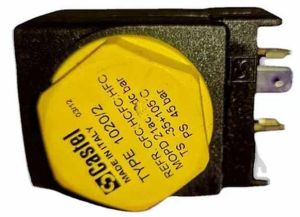

Operates reliably across temperatures from –35 °C to +105 °C, is compatible with modern fluorinated refrigerants like R134a, R404A, R407C, and is available with or without coil (S suffix = no coil).
Additional Information:
- Item Code: 302750431
Looking for "Castel 1064 4 Solenoid Valve" ?
Piece
